Edward Tufte is a statistician, artist, and Yale professor emeritus whose books explore how to present quantitative evidence clearly and accurately. — Edward Tufte — Books and Essays.

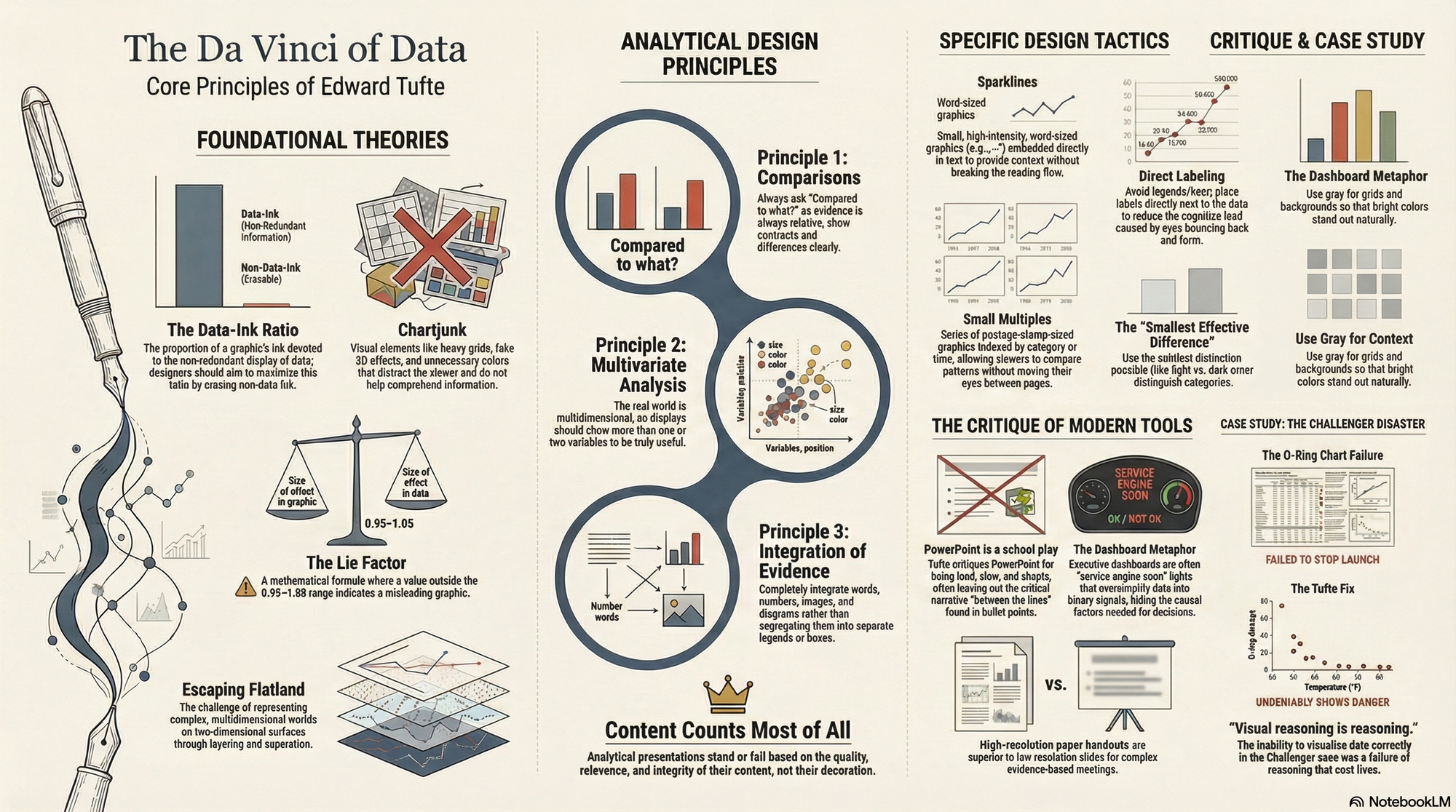

Visual summary of operating lessons from Edward Tufte.

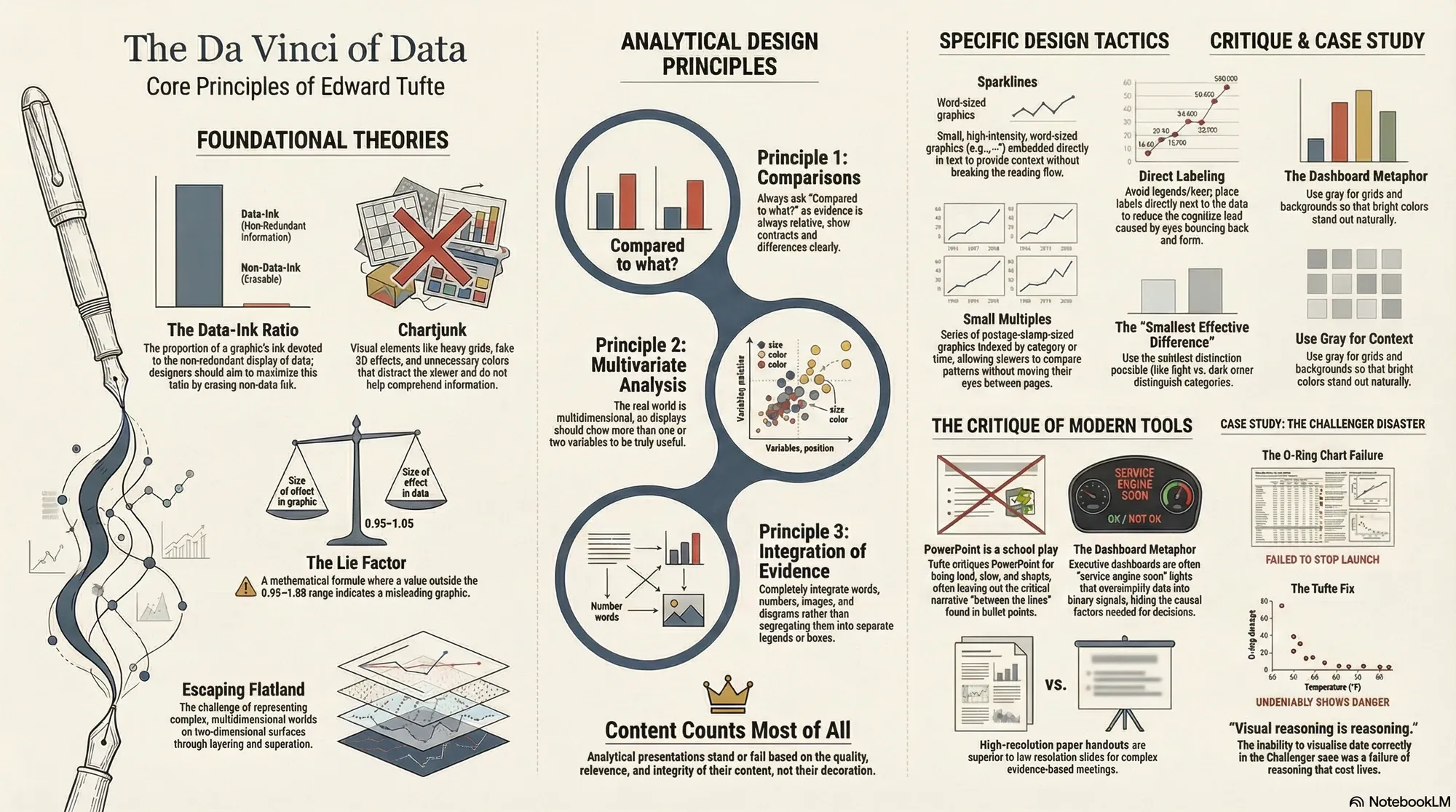

Infographic for "Lessons from Edward Tufte".

Part I: Top Quotes

On Design & Clarity

  1. Design away clutter: Tufte argues that clutter and confusion are problems in the design of an information display, not inherent properties of the information itself. — Windows Phone 7 Series.
  2. Show the data: In The Visual Display of Quantitative Information, Tufte makes 'Above all else show the data' the governing principle for statistical graphics. — Sparklines History.
  3. Content comes first: A graphic cannot compensate for weak or irrelevant evidence. Tufte starts with the analytical task and lets content determine the display. — Analytical Design and Human Factors.
  4. Make rich evidence readable: Tufte favors spare visual architecture that lets viewers reason about rich, complex, multivariate evidence without spending their attention decoding the design. — Analytical Design and Human Factors.
  5. Find the right evidence: Before polishing a display, identify the evidence that actually helps answer the decision or analytical question; Tufte says the right evidence needs to be located, measured, and shown. — Executive Dashboards.
  6. Add useful detail: Tufte’s redesign of scientific illustrations adds direct labels, measurement scales, and contextual differentiation instead of stripping evidence away. — Evidence Presentations.
  7. Let reasoning shape design: The design of an analytical graphic should follow the reasoning task: description, comparison, causal explanation, and scrutiny of evidence. — Analytical Design and Human Factors.
  8. Remove impediments to reasoning: Tufte argues that a display should minimize the time spent figuring out its design and maximize the time available for reasoning about its content. — Analytical Design and Human Factors.
  9. Simple design, complex information: Tufte’s short form is to keep the design spare and straightforward while presenting rich, complex, multivariate evidence. — Analytical Design and Human Factors.

On Chartjunk & Integrity

  1. Graphical integrity matters: A statistical graphic should represent the magnitude and context of its evidence honestly; decorative distortion can weaken credibility. — PowerPoint Is Evil.
  2. Be wary of pie charts: In a spatial comparison example, Tufte calls the pie chart a poor fit and suggests a table or table-graph that lets readers compare the values more directly. — Pie Charts.
  3. Chartjunk cannot replace evidence: Tufte contrasts a rich, comparable data table with slideware graphics that separate and decorate the same evidence, making it harder to reason about. — PowerPoint Is Evil.

On PowerPoint & Presentation

  1. Slides can flatten complex evidence: Tufte argues that low-resolution slideware can force rich, comparable evidence into a sparse sequence, making relationships and context harder to see. — PowerPoint Is Evil.
  2. A school-play pace: Tufte directly compares many PowerPoint presentations to a school play—loud, slow and simple—when slide format dominates substantive communication. — PowerPoint Is Evil.
  3. Decoration cannot rescue irrelevance: If words or images are not on point, adding color and motion will not make them relevant; content quality matters more than visual effects. — PowerPoint Is Evil.
  4. Keep complex statements intact: A slide’s limited space can compress evidence and force many slides in sequence; side-by-side tables or written reports may better support comparison. — PowerPoint Is Evil.
  5. Bullets are not a narrative: Tufte criticizes hierarchical PowerPoint bullets when they replace connected sentences and the explanation between points. — Lists: Design and Construction.

On Analytical Thinking

  1. Escape flatland: Envisioning Information explores how to display complex, high-dimensional evidence on flat paper and screens. — Envisioning Information.
  2. Seeing across art and science: Tufte describes science and art as sharing intense observation and treats evidence presentation as turning seeing into showing. — Beautiful Evidence.
  3. Reason across forms of evidence: Beautiful Evidence treats words, numbers, images and diagrams as different forms of evidence subject to the same tests of relevance, integrity and credibility. — Beautiful Evidence.
  4. Always ask what to compare: For Tufte, comparison is a core task of analytical graphics, and a case study should prompt the question “Compared to what?” — Narrating and Imaging an Aortic Dissection.

Part II: Key Learnings & Concepts

Tufte’s data-ink ratio asks how much of a graphic’s visible ink conveys nonredundant data. Removing ink that neither shows data nor aids interpretation can make the evidence clearer. — The Visual Display of Quantitative Information.

  1. Chartjunk: Decorative marks and heavy visual effects can compete with or distort the data a graphic is meant to show. — Chartjunk.
  2. Lie factor: Tufte’s lie factor compares the size of an effect depicted in a graphic with the size of the effect in the underlying data; a mismatch signals graphical distortion. — The Visual Display of Quantitative Information.
  3. Sparklines in context: A sparkline is a small, word-sized data graphic that can sit within text or a table, adding context without sending readers to a separate chart. — Sparkline Theory and Practice.
  4. Small multiples: Repeated graphics on a common design let readers compare patterns across categories or over time without repeatedly changing visual context. — Envisioning Information.
  5. Escaping flatland: Tufte’s Envisioning Information explores how to show complex, high-dimensional information on flat paper and screens. — Envisioning Information.
  6. Layering and separation: Tufte treats layering and separation as ways to keep complex evidence legible: contextual marks can recede while data remains visually prominent. — Analytical Design and Human Factors.
  7. Micro/macro reading: A dense display can offer an overall pattern at a glance and detailed evidence on closer reading, rather than forcing a choice between summary and detail. — Envisioning Information.
  8. When decoration overtakes data: Tufte’s chartjunk critique warns against making a graphic’s decorative container more prominent than the evidence inside it. — Chartjunk.
  9. Ask: compared with what?: Comparison is central to interpreting evidence. Tufte urges readers of a case study to ask what the result is being compared with. — Narrating and Imaging an Aortic Dissection.

Analytical Design Principles (from Beautiful Evidence)

  1. Compare evidence: Analytical graphics should help people make comparisons; without a point of reference, a value is difficult to interpret. — Analytical Design and Human Factors.
  2. Show mechanisms where evidence permits: A good analytical display can help explain causality and mechanisms, but its design must not imply a causal relationship the underlying evidence cannot establish. — Analytical Design and Human Factors.
  3. Show multivariate context: Tufte favors rich, multivariate evidence in a spare visual architecture so the viewer can reason about the content rather than decode the design. — Analytical Design and Human Factors.
  4. Integrate words and images: Tufte’s annotated-illustration redesign places labels and explanation with the visual evidence instead of forcing readers to decode a separate letter key. — Evidence Presentations.
  5. Document what the evidence shows: An evidence display should identify what is measured and make its scale clear; Tufte’s redesign improves scales and puts labels alongside the illustrated objects. — Evidence Presentations.
  6. Content counts: Tufte treats quality, relevance and integrity of evidence as the test of a presentation, whatever its mixture of words, numbers, images and diagrams. — Beautiful Evidence.

Specific Design Tactics

  1. Minard’s multidimensional map: Tufte uses Minard’s map of Napoleon’s Russian campaign to show how one graphic can bring troop size, position, direction, temperature and time into a common view. — The Work of Charles Joseph Minard.
  2. Gray contextual marks: Tufte advises graying axes, tick marks and grid lines so they remain available for reading the chart without competing with the data. — Tick Marks in Graphs.
  3. Label evidence in place: Where space permits, direct labels can spare readers from matching a visual mark to a separate letter key; Tufte demonstrates this in a redesigned scientific illustration. — Evidence Presentations.
  4. Choose table typography for alignment: Tufte has used both serif and sans-serif typefaces in his books and tables; the point is readable labeling and aligned numbers, not a categorical requirement for serifs. — Tufte Book Fonts.
  5. Mute the grid: A chart’s axes and grid should be visually subordinate to its data; Tufte recommends graying them down to reduce clutter. — Tick Marks in Graphs.
  6. Use tables when they carry the comparison better: Before graphing a modest data set, compare the graphic with a well-designed table of the same numbers; Tufte notes that tables can outperform graphics even with 100–300 values. — Tornado Plots.
  7. Keep administrative grids from dominating: Tufte criticizes project charts whose bureaucratic grid is more visually prominent than the actual tasks and quantitative evidence. — Project Management Graphics.

Part III: The Critique of Modern Dashboards

Tufte urges designers of management displays to start with the decisions and thinking tasks, then show clear, well-labelled, high-resolution evidence instead of leading with cockpit or dashboard metaphors. — Executive Dashboards.

  1. Start with the decision, not a warning light: A single status light can hide the underlying evidence. Tufte recommends identifying the thinking task first, checking data quality, and presenting measurements and annotations that help explain the process. — Executive Dashboards.
  2. Design for rich information: Tufte argues that a display can be visually spare while carrying complex, high-resolution information; the answer to clutter is better organization, not automatically less evidence. — Windows Phone 7 Series.
  3. Make space for trends: Rather than fill management screens with dashboard metaphors, Tufte favors well-labelled tables and graphics; sparklines can reveal history and counter recency bias. — Executive Dashboards.
  4. Use the available resolution: Tufte criticizes presentation formats that thin or fragment evidence when a higher-resolution display could show data and comparisons together. — PowerPoint Is Evil.

Part IV: Ethics & The "Cognitive Style"

Tufte treats the accuracy, relevance and integrity of evidence as consequential when graphics and explanations inform serious decisions. — Beautiful Evidence.

  1. A slide deck can turn explanation into a pitch: Tufte argues that standard PowerPoint elevates format over content and can turn communication into a sales pitch rather than a careful presentation of evidence. — PowerPoint Is Evil.
  2. Respect the audience: Tufte argues that speakers should respect their audience with substantive content and coherent explanation, rather than trivializing the subject through thin slides. — PowerPoint Is Evil.
  3. Let design follow the reasoning: When a display is organized around the analytical tasks—description, comparison, causality and credibility—its design helps the reader reason about the evidence. — Analytical Design and Human Factors.
  4. Evidence selection carries responsibility: A presentation stands or falls on the quality, relevance and integrity of the evidence it selects and shows; a polished format cannot compensate for missing context. — Beautiful Evidence.
  5. Make the thinking legible: Tufte designs analytical graphics to assist thinking about evidence; the display should help readers describe the data, compare it and assess its credibility. — Analytical Design and Human Factors.

Part V: Advanced Concepts (Beyond the Basics)

Parallel views reveal relationships: Tufte sketches a project-management display with different series shown in parallel, an overview bar and detailed context so readers can inspect linked activities together. — Project Management Graphics.

Visual confections: In Visual Explanations, Tufte treats composed visual arrangements as a way to explain mechanisms and carry a narrative, not merely decorate a page. — Visual Explanations.

Technical reports can beat slides: For complex engineering evidence, Tufte argues that a coherent technical report can serve analysis and documentation better than a sequence of low-resolution slides. — PowerPoint Does Rocket Science.

  • Amazon’s six-page narrative meetings: Tufte describes Amazon leaders’ account of starting meetings with silent reading of a six-page narrative memo instead of a slide deck. That is an Amazon practice he discusses, not a meeting format shown here to be his invention. — Tufte on Amazon’s Presentation Method.

Part VI: Specific Design Rules of Thumb

  1. Use only as much visual contrast as needed: Tufte’s redesign dims contextual marks while keeping labels and measurements legible, so visual emphasis follows the evidence rather than decoration. — Evidence Presentations.
  2. Avoid automatic zebra stripes: Tufte argues that good typography can organize a table without alternating row bands that add a separate visual pattern. — Zebra Tables and Lists.
  3. Annotate when context aids interpretation: Tufte recommends placing explanatory labels and relevant details near the evidence, instead of making readers decode distant legends or guess the measurement context. — Evidence Presentations.

Part VII: The Challenger Disaster Case Study

Tufte’s Challenger analysis concerns the selection and display of O-ring and temperature evidence before launch. His criticism of Boeing/NASA PowerPoint slides concerns the separate Columbia accident; the two cases should not be conflated. — PowerPoint Does Rocket Science.

  1. Show the full temperature–damage pattern: Tufte’s Challenger case argues that the launch decision needed a display of earlier flights’ O-ring damage against temperature, rather than a selective presentation that obscured the cold-weather risk. — Visual and Statistical Thinking.
